High Mast Lighting — Project Supply & Specifications
High mast lighting for large-area projects, with original supplier photos, qualified luminaire specifications and project-specific mast engineering requirements.
Overview
Mast Lighting supplies high mast lighting as an agent/distributor of Zijun Lighting for large-area outdoor projects. This page presents a category for project inquiries, not a single fixed assembly. The six original supplier views show the published range; they do not establish which components are included in a quotation.
High mast lighting uses elevated luminaires to serve open areas such as ports, logistics yards, sports facilities and highway interchanges. A proposed system needs coordinated optics, mounting, structural design, electrical supply and maintenance access. Site suitability must be evaluated rather than inferred from a photograph or wattage.
Separate the luminaire from the mast
The source sheet carries the supplier reference ZJ-003 and lists luminaire power from 45W to 270W, AC input and optical options. These are not the total system power, mast dimensions or a verified configuration matrix. The source does not connect every photograph to a specific luminaire option.
The previously supplied 20–60 m category range is retained only for project discussion. The new luminaire sheet lists 3–30 m installation height. These ranges describe different scopes and have not been reconciled; do not assume the listed luminaire is approved for a 60 m mast.
Define the equipment and design scope
Use a project checklist covering luminaires and optics, mast and head frame, controls and electrical equipment, foundation and anchors, and maintenance access. Confirm each line in the quotation. A lowering system, anchor cage or complete installation service is not automatically included.
Mast Lighting coordinates free Dialux lighting design. Share a site plan, proposed mast positions, lighting criteria and local requirements. Matching photometric files, aiming and fixture counts must support the design; structural and electrical checks remain separate.
Technical parameters
High Mast Light specifications
Compare these category parameters with your project requirements. Confirm configurable values and supporting documentation for the selected model before ordering. Free Dialux lighting design supports the lighting layout only. Luminaire selection, mast structure, foundations, electrical protection and maintenance access require separate project checks.
Luminaire — Supplier-Listed Electrical & Optical Data
| Scope and source | Zijun Lighting lists model ZJ-003 on its High Mast Light page. This is a supplier reference, not a Mast Lighting SKU. The sheet describes luminaire parameters; it does not define a complete mast assembly or prove that every photographed arrangement uses this luminaire. |
|---|---|
| Input power | 45W–270W, in 45W increments, as stated in the supplier sheet. Confirm the selected luminaire power and driver; this is not the total connected load of a complete mast. |
| Input voltage and frequency | AC 100–305V; 50/60 Hz, supplier-listed for the luminaire. Confirm the selected driver and local electrical supply. This does not specify a lifting motor, distribution cabinet or complete site circuit. |
| Power factor | PF ≥0.95, supplier-listed. Measurement voltage, loading and dimming conditions are not provided; request configuration-specific data. |
| Color temperature options | 2200K / 3000K / 4000K / 5000K / 5700K / 6500K. Separate options, not a pairing with wattage or beam angle. Confirm the selected combination. |
| Color rendering and tolerance | Ra ≥70 and 5 SDCM, supplier-listed. Confirm the applicable LED configuration and supporting color measurements. |
| Beam options | 15° / 25° / 40° / 60° / 90° and the source code “P45°”. P45 is not defined in the sheet. Request matching IES/LDT files and an optical drawing before selecting a distribution. |
| Luminous efficacy — unresolved | The same sheet lists 100–180 lm/W ±5% and 145–155 lm/W without explaining their relationship. Neither is adopted as a guaranteed value. Request a matched luminaire test report; do not calculate guaranteed lumens or savings from either range. |
Luminaire — Housing, Environment & Service Access
| Housing material | High-pressure die-cast ADC12 aluminum, supplier-listed for the luminaire housing only. It is not a specification for the steel mast, head frame or foundation. |
|---|---|
| Ingress protection | IP65, supplier-listed for the luminaire. Obtain a report for the quoted construction and confirm separate protection requirements for connectors, controls and cabinets. |
| Ambient temperature | −40°C to +50°C, supplier-listed. Confirm driver and luminaire performance at the actual site temperature; no derating curve is attached. |
| Ambient humidity | 20%–90%, supplier-listed. The sheet does not define condensation conditions or a corresponding test method. |
| Mounting pipe diameter | Ø60 mm, supplier-listed luminaire interface. Confirm bracket geometry, insertion depth, locking, allowable loads and fit with the selected head frame; this is not the mast diameter. |
| Housing access | Tool-free cavity opening is stated for the luminaire. This does not establish tool-free LED/driver replacement, safe elevated access or an included lowering mechanism. |
| Coating evidence required | A 500-hour salt-spray statement appears in the housing description. No test method, acceptance criteria or report is supplied. It is not a verified coastal service-life guarantee or a mast-galvanizing specification. |
| Surge protection evidence required | 10 kV is listed, but test waveform, coupling mode and conditions are not supplied. Request the driver/SPD arrangement and applicable report; this does not establish complete site lightning protection. |
Controls, Warranty & Documentation — Confirmation Required
| Dimming and control references | The sheet lists 1–10V, DALI, “Amplight control interface” and “CityTouch ex NB-IoT/GPRS” as customized controls. Confirm the exact driver/controller and interface documentation; no certification or platform interoperability is inferred. |
|---|---|
| Connected-control compatibility | For a connected option, confirm controller hardware, network bands, destination coverage, platform access and any service requirements in the quotation. Listing a network name is not proof of compatibility. |
| Lifetime evidence | The source states more than 100,000 hours without a lumen-maintenance criterion, test conditions or projection method. It is not adopted as a verified luminaire, driver or complete-system lifetime. |
| Warranty | The supplier sheet lists 3 years. Confirm the responsible party, covered components, exclusions and claim procedure in writing. This is not automatically a 3-year warranty on the mast, lifting equipment or civil works. |
| Documents to request | Request the selected configuration sheet, dimensional/mounting drawings, IES/LDT files, electrical and control details, relevant performance/compliance reports and warranty terms. No matched report or downloadable file accompanies this alignment. |
| Quality credentials | Factory audit and ISO9001 information belongs to the manufacturing partner, Zijun Lighting, not to Mast Lighting as factory owner. Request applicable documents; a factory audit is not product certification. |
Complete Mast System — Project-Specific Engineering
| Height ranges are not interchangeable | The existing supplier category information describes 20–60 m mast projects; treat this only as a range for project discussion. The supplied luminaire sheet instead lists 3–30 m installation height. Their relationship is unconfirmed; neither approves this luminaire or a complete structure for a particular height. |
|---|---|
| Mast and corrosion specification | The partner portfolio includes galvanized steel poles. For this high mast project, steel grade, thickness, section geometry, joints, weld details and coating requirements need separate drawings and confirmation. No complete mast schedule is supplied by this page. |
| Head frame and fixture loading | Confirm the head frame, fixture quantity, aiming, total equipment mass and wind-exposed area with photometric and structural calculations. A photo does not establish the delivered bill of materials. |
| Wind and foundation design | Provide site location, applicable design criteria and ground information. Request structural calculations, foundation design and anchor details for the selected system. No universal Grade 12 rating or included anchor-bolt cage is claimed. |
| Maintenance and lowering system | Maintenance access and any lowering mechanism are unconfirmed. If requested, obtain system drawings, load ratings, locking/anti-drop provisions, operating procedures and inspection documentation. No winch, lifting ring or motor is assumed included. |
| Electrical integration | Confirm distribution, protection, cabling, earthing and any lightning-protection requirements with the responsible project engineer. Luminaire input voltage and surge figures do not establish compliance for the installation. |
| LED versus HID evaluation | Compare designs at the same required illuminance, uniformity and glare limits. Use documented system input power, operating hours, tariff, maintenance-access costs and service-life assumptions. No fixed replacement ratio, energy-saving percentage or payback is asserted. |
| Planning resources | Prepare a scaled site plan, intended use, obstructions, proposed mast positions, lighting criteria, operating schedule and local requirements. Request matching drawings and photometric files; original gallery views are not verified project case studies. |
| Design service and quotation scope | Mast Lighting coordinates free Dialux lighting design using the project requirements. Lighting simulation does not replace structural, foundation or electrical engineering. Agree the equipment list, engineering responsibilities, installation scope and commercial terms in the quotation. |
Where it is used
Application scenarios
These are application scenarios to assess, not completed project references. Confirm site-specific lighting and safety criteria. See our lighting solutions for broader planning context.
- Ports, container yards and freight terminals — assess layout and coastal exposure
- Airport service areas and aprons — confirm applicable lighting and operational requirements

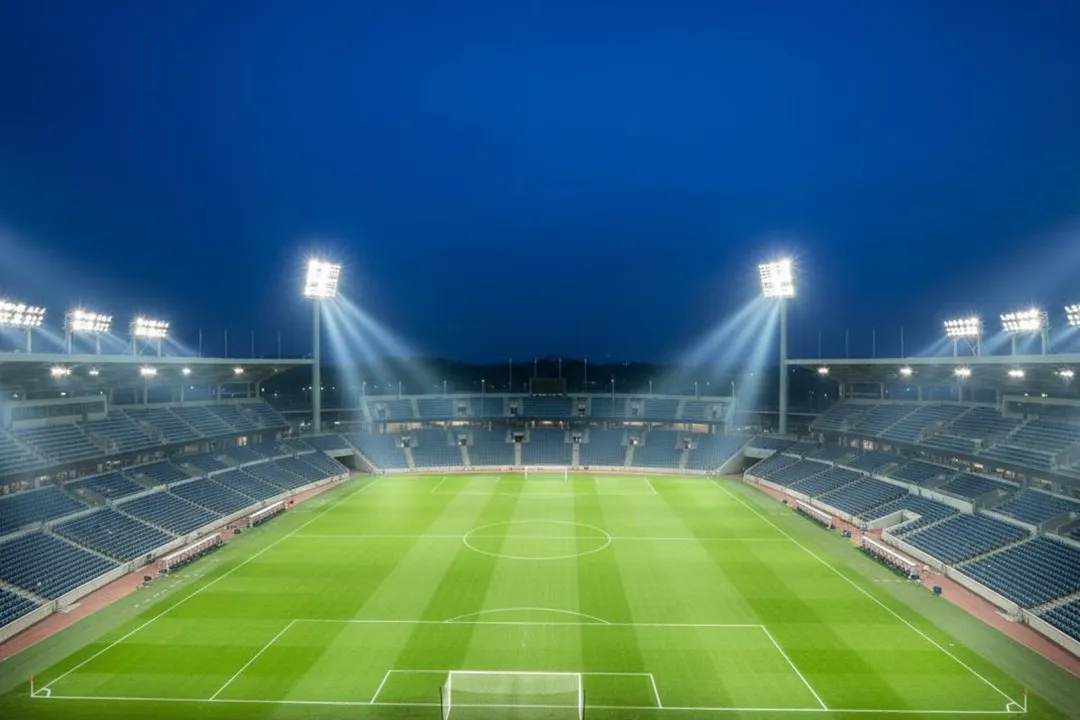

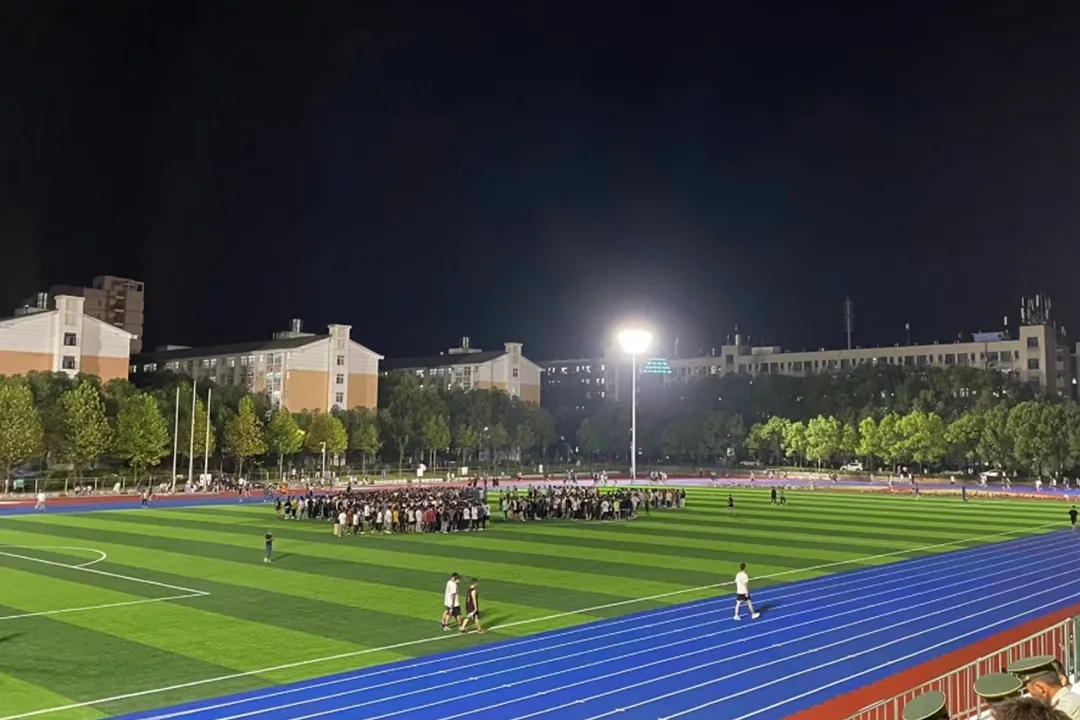

- Stadiums and sports facilities — define the activity, glare limits and lighting criteria
- Mining and chemical sites — confirm environmental and hazardous-area requirements; no explosion-proof rating is claimed
- Logistics parks and open storage yards — evaluate traffic, obstructions and maintenance access
- Highway interchanges and large junctions — apply the responsible authority’s design criteria
Configurable
What can be customized
Mast Lighting coordinates OEM/ODM customization with its manufacturing partner. Submit luminaire, mast, controls, maintenance-access, labeling and packaging requirements for technical review. Each option and the supply scope require written confirmation.
- Luminaire power, CCT and beam selection — combinations require confirmation
- Mast height and structural design — subject to site requirements and engineering review
- Head frame, fixture count and aiming — confirm photometric and structural compatibility
- Dimming or connected controls — verify the selected driver, controller and platform
- Surface treatment and corrosion-protection requirements — agree the specification and evidence
- Maintenance access or a requested lowering system — subject to technical confirmation
- Product labeling and packaging — confirm OEM/ODM scope with the manufacturing partner
Product questions
High Mast Light FAQ
Commercial questions on MOQ, samples, lead time, shipping and warranty are collected on the FAQ page.
What is high mast lighting?
High mast lighting uses elevated luminaires to illuminate large outdoor areas, including transport, industrial and sports spaces. Definitions and height thresholds depend on the authority and application. Mast Lighting supplies this category through its manufacturing partner; the exact mast, luminaire and access arrangement must be defined for the project.
What is the ideal height for high mast lights?
There is no universal ideal height. Area dimensions, lighting criteria, glare limits and structural requirements govern selection. The existing 20–60 m category range is for project discussion, while the source luminaire sheet lists 3–30 m installation height. These are not interchangeable ratings or approval of the listed luminaire at 60 m.
What are the different types of high mast lights?
Compare luminaire technology, optical distribution, mast/head-frame design and maintenance arrangement separately. This category presents supplier-listed LED luminaire options. A fixed-access or lowering arrangement must be specified and confirmed for the project; the supplier sheet does not establish that a lifting system is included.
How much does high mast lighting cost?
Cost depends on the agreed equipment and engineering scope: mast height and structure, luminaires, controls, foundations, maintenance access, documentation and logistics. Send the destination, quantities and site requirements for a project-specific quotation. This category page does not publish a fixed price, stock commitment or delivery promise.
