Traffic Signal Poles — Drawing & Supply Review
Traffic signal pole supply with drawing-based review of geometry, finish and equipment loads. Signal heads and accessories require separate scope confirmation.
Overview
Mast Lighting supplies traffic signal poles as an agent/distributor of Zijun Lighting for importers, municipal buyers and engineering contractors. The two original supplier photographs show product views, not a fixed shipment specification. The clearer second supplier view is displayed first. ZJ-006 is the supplier’s reference, not a Mast Lighting SKU.
Pole drawings define the configuration
Height, wall thickness, shaft profile and arm arrangement must be confirmed together on the selected drawing. The source lists broad 3–40 m height and 1.8–30 mm wall-thickness ranges separately; it does not establish valid combinations, arm reach, pole diameter or approved loads. Signal-head mounting height and roadway clearance are separate design inputs.
Confirm the complete supply scope
A structural pole is not a complete traffic-control system. Ask for an itemized quotation identifying the pole, arms, flange components, anchors, signal heads, controller, cabinet, cables and mounting hardware as included, excluded or separately quoted. Foundations, installation, cameras, detectors and signs are not automatically included. A photograph does not confirm electrical compatibility, gantry availability or rail-signaling approval.
Drawing review and project support
Send the destination, quantity, site layout, geometry, equipment weights and projected areas, mounting interfaces, finish and required documents for review. Mast Lighting coordinates requirements with its manufacturing partner; proposed drawings and specifications need written agreement before the quotation scope is finalized. A submitted drawing is not automatic manufacturing acceptance.
OEM/ODM support can cover reviewed geometry, brackets, finish, identification and packaging. Free Dialux lighting design can support a separately specified lighting layout, but does not approve signal placement, traffic-control logic, structural calculations or foundations. Lighting poles and other outdoor lighting products can be discussed as separate line items, not assumed inclusions.
Technical parameters
Traffic Signal Light Pole specifications
Compare these category parameters with your project requirements. Confirm configurable values and supporting documentation for the selected model before ordering. Free Dialux lighting design supports a separately specified lighting layout only. It does not approve signal placement, traffic-control logic, pole structure, anchorage or foundations; these require their own project review.
Pole Structure — Source-Listed References
| Source and configuration scope | Zijun Lighting lists ZJ-006 as its reference. It is not a Mast Lighting SKU. The source does not map each gallery view to an approved drawing or a complete bill of materials. |
|---|---|
| Pole height reference | 3–40 m is a broad source-listed range, not a standard traffic-signal height or a confirmed configuration schedule. Specify overall height, mounting height and roadway clearance separately. |
| Wall thickness reference | 1.8–30 mm is listed independently of height and diameter. No height/thickness combinations, load capacities or approved sections are established by this table. |
| Material and steel grade | The main table specifies steel; the recommendation table lists Q235/Q345, iron, steel and aluminum. Confirm the selected material, grade and material certificate; these references do not establish interchangeable grades or a verified aluminum variant. |
| Shaft profiles | Round conical, octagonal tapered, straight square and tubular stepped profiles are listed. Geometry, taper, diameters and section details require an approved drawing. |
| Arms and brackets | Single or double arms/brackets are listed, with shape and dimensions subject to customer requirements. Arm reach, brackets, connection design and supported loads remain drawing-specific; gantry availability is not established. |
| Joints and base plate | The source lists flange joints and square or round base plates with slotted anchor-bolt holes. Confirm plate dimensions, joint details and bolt layout; anchors and cages are not assumed included. |
| Shaft fabrication and welding | The source describes folded steel sheet, longitudinal automatic welding, internal/external welds and flaw testing. Request the applicable welding procedure, inspection scope and results. Its unclear “CWB5.EN 15614” reference is not verified compliance. |
| Wind, fatigue and structural design | Wind resistance is stated as customized to the environment; no rated wind speed or load schedule is supplied. Provide project design criteria and equipment weights/projected areas for review, including arm, connection, anchorage and foundation checks. |
Pole Finish & Delivery — Confirmation Required
| Galvanizing | Hot-dip galvanizing is source-listed. The stated coating thickness “80–100 mm” has a suspect unit and is not adopted as a specification or silently converted to micrometers. Request a corrected coating schedule and inspection report. |
|---|---|
| Coating-standard references | The source cites GB/T 13912-2002, ASTM A123, IS 2626:1985 and BS EN ISO 1461. These are unverified source references, not certificates or confirmed current editions. Agree the applicable standard, edition and acceptance criteria in writing. |
| Optional color finish | Pure polyester powder coating with RAL color selection is listed as optional. Confirm substrate preparation, layer sequence, coating thickness, color and inspection criteria for the quoted finish. |
| Packing | Cotton and bubble bags are source-listed. Confirm protection of flanges and finish, bundle dimensions, handling arrangements and any additional export packing with the quotation. |
| Pole service life | The source claim of more than 15 years has no matched exposure conditions, inspection regime or test basis. It is not a guaranteed lifespan or maintenance-free promise. |
| Pole warranty | Pole-specific warranty coverage is not established. The one-year entry appears alongside signal-head data; confirm the covered item, responsible party, start date, exclusions and remedies separately. |
Separate Signal Head — Not Pole Ratings or Included Equipment
| Component scope | The source also lists a red/green signal-head reference. These data do not rate the steel pole, confirm a complete traffic system or establish the equipment included with either gallery view. |
|---|---|
| Signal-head input alternatives | AC 100–240 V at 50/60 Hz, or 12 V DC, or 24 V DC is listed. Select and confirm the exact variant; this is not a universal-input unit or a promise that every head accepts all three supplies. |
| Signal-module power | Red ≤5 W and green ≤5 W are source-listed separately. Do not infer whole-system consumption, controller power or combined operating demand. |
| LED quantities | Red: 96 LEDs; green: 96 LEDs are listed for the signal-head reference. No configuration-specific drawing or optical test report is provided. |
| Signal-module diameter | 200 mm (8 inches as written by the source) is the listed signal-module diameter, not the pole diameter or a guaranteed bracket interface. |
| Wavelength references | Red: 625 ±5 nm; green: 500 ±5 nm are source-listed. These values alone do not demonstrate traffic-signal color or photometric compliance. |
| Head housing and ingress rating | PC or aluminum housing and IP54 are listed for the signal head only. Confirm the chosen housing and matching test evidence; neither is a material or IP rating for the entire pole assembly. |
| Head environmental references | −40°C to +75°C and 10–90% relative humidity are source-listed for the signal head. Condensation limits and test conditions are unspecified; confirm suitability for the destination. |
| Visibility | The source claims visibility beyond 500 m without viewing conditions or a matched report. No guaranteed viewing distance or authority acceptance is stated here. |
| Head warranty and controls | One year is listed near the head specifications, but coverage and terms require written confirmation. Controller interfaces, timing, detection and operating modes are not specified. |
Quotation Scope — Items to Confirm in Writing
| Pole, arms and connections | Confirm quantities, drawing revisions, material, dimensions, connection details and the exact structural components supplied. Source photographs do not constitute a packing list. |
|---|---|
| Anchors and civil works | Base plates, anchor bolts/cages, templates, foundations and installation must be explicitly included, excluded or separately quoted. No default anchor cage or foundation package is assumed. |
| Signal equipment and wiring | Signal heads, controller, cabinet, cables, electrical protection and mounting hardware require an itemized scope and compatibility review. Cable entries, access doors, routing and earthing details are not established by the source. |
| Cameras, signs and special applications | Cameras, detectors, signs and their brackets are separate requests with additional load/interface checks. Gantries, rail-signaling applications and jurisdiction-specific approvals are not confirmed by this listing. |
| Evidence and acceptance | Request approved drawings, material records, structural calculations, weld/coating inspection results and any signal-head test documents required for the selected order. No blanket product certification is inferred from factory credentials. |
| Commercial terms | Quantity, availability, price, lead time, shipping and warranty terms require a project quotation. The source’s “50000” capacity entry lacks a period and is not an order guarantee; HS code 7308900000 is not a confirmed destination classification. |
Where it is used
Application scenarios
These are planning scenarios, not completed projects or proof of traffic-authority approval. Confirm signal placement, clearance, structural criteria and equipment compatibility. See our traffic and rail-transit planning context; rail-signaling suitability is not established by this product listing.

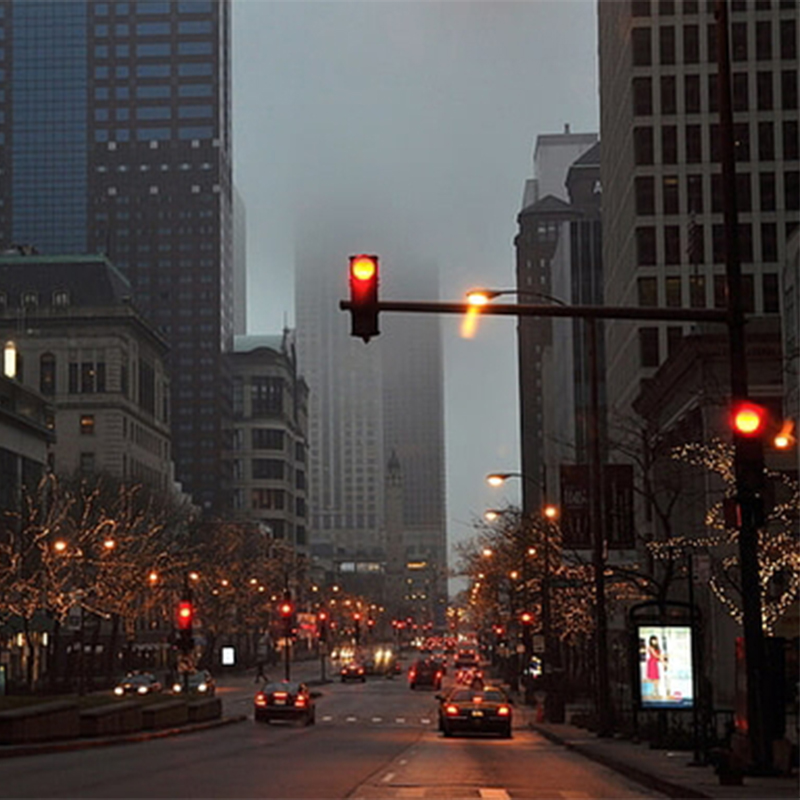

- Urban intersection signal-support planning — subject to the authority’s layout, clearance and structural criteria
- Municipal traffic-upgrade procurement — verify the selected pole drawing and existing equipment interfaces
- Pedestrian-crossing signal supports — confirm mounting positions, equipment and local requirements
- Industrial or logistics-site junctions — review vehicle clearance and equipment loads for the site
- Camera or detector co-mounting requests — separate bracket, load and electrical review; equipment not assumed included
Configurable
What can be customized
Mast Lighting coordinates OEM/ODM review with its manufacturing partner. Submit geometry, supported equipment, connections, finish, electrical interfaces and packing requirements. Drawing acceptance, availability and each included component require written confirmation.
- Overall height, shaft profile and section dimensions for drawing review
- Single/double arm geometry, reach, supported equipment and bracket positions
- Material grade, connections, flange dimensions and anchor arrangement
- Galvanizing specification, inspection criteria and optional RAL powder-coated finish
- Cable entries, access, earthing and mounting interfaces for confirmation
- Signal-head variant and controller compatibility only when separately requested
- Product identification, packaging and an itemized component supply list
Product questions
Traffic Signal Light Pole FAQ
Commercial questions on MOQ, samples, lead time, shipping and warranty are collected on the FAQ page.
What is the standard height of a traffic signal pole?
There is no standard installation height established by this listing. The supplier’s 3–40 m range is a broad pole reference, not a clearance rule or an approved configuration. Submit the site requirements and drawing; overall pole height, signal mounting height and roadway clearance must be reviewed separately with the applicable authority’s criteria.
What material is used for these traffic signal poles?
The main source table specifies steel, while its recommendation table also lists Q235/Q345, iron and aluminum. Mast Lighting asks the manufacturing partner to confirm the actual material, grade and supporting documents for the chosen drawing. These entries do not prove that all materials are interchangeable or that an aluminum variant is available.
What types of traffic signal poles can I request?
The source lists round conical, octagonal tapered, straight square and tubular stepped profiles with single or double arms. Send your geometry, equipment loads and mounting requirements for drawing review. Cantilever reach, gantries and special assemblies need separate confirmation; signal heads, controllers, anchors and accessories are supplied only when included in the written quotation.
What voltage do the traffic signal heads use?
The separate head reference lists AC 100–240 V at 50/60 Hz, or 12 V DC, or 24 V DC. Confirm one compatible variant for the order; do not assume universal input. These are electrical options for a separately specified signal head, not ratings for the pole or proof that heads and controllers are included.
