Solar Lighting
Solar Street Lights — All-in-One & Split, 50W–300W
All-in-one and all-in-two solar street lights in a 50W–300W range, with LiFePO4 storage and project-specific panels, poles and controls.
Overview
Mast Lighting supplies all-in-one and all-in-two solar street lights for roads, parking areas, pathways and infrastructure projects. The 50W–300W range uses solar generation and LiFePO4 battery storage, with the panel, battery, LED load and operating schedule selected together for each project.
Two configurations, one project-specific approach

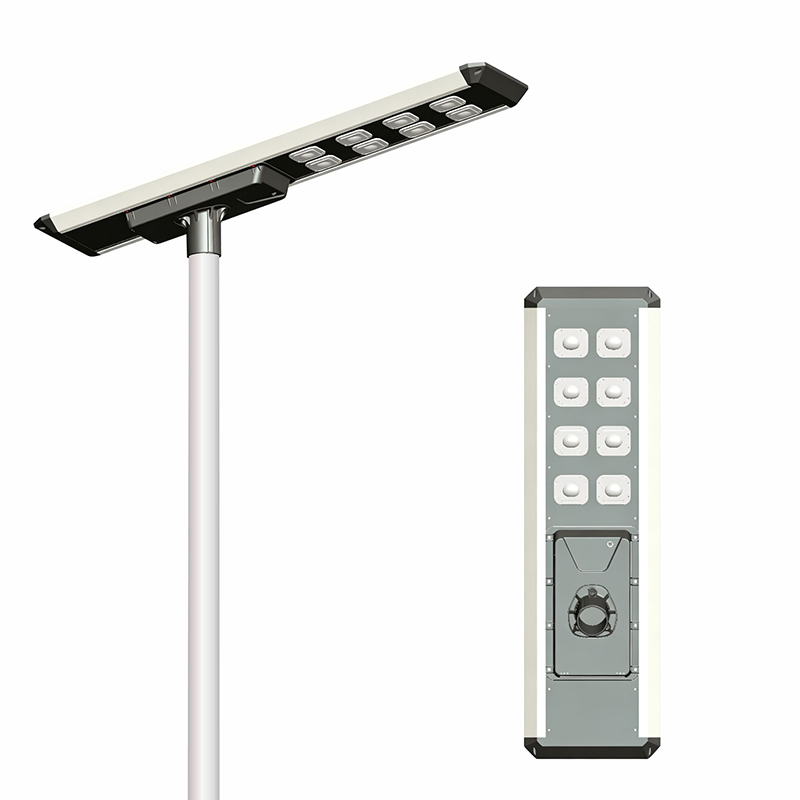

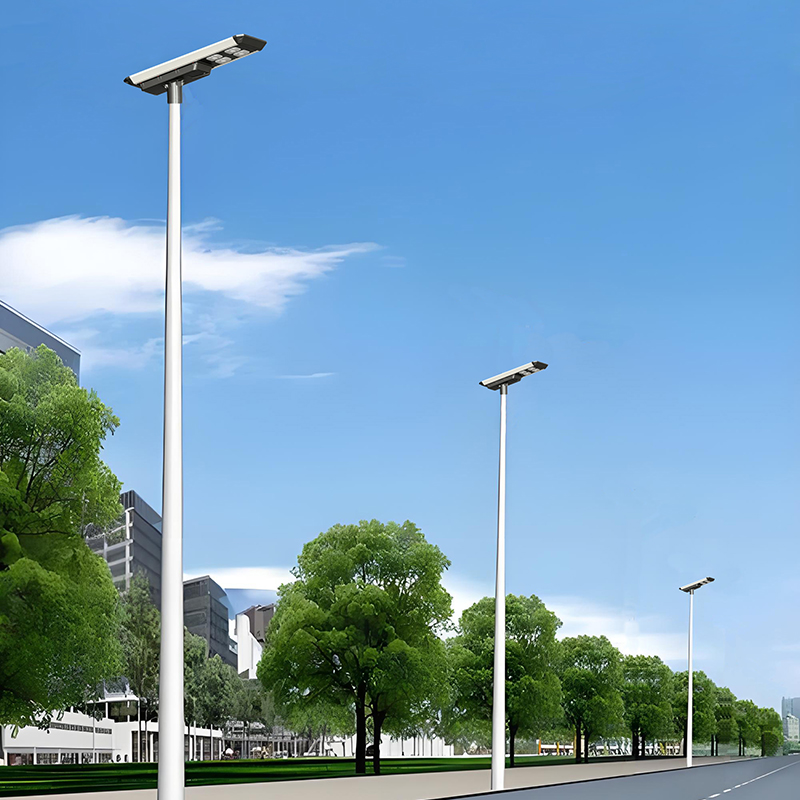

All-in-one / integrated luminaire: an integrated assembly consolidates the lighting system components. Review the selected model drawing to confirm the solar panel, battery compartment, LED module and mounting arrangement.

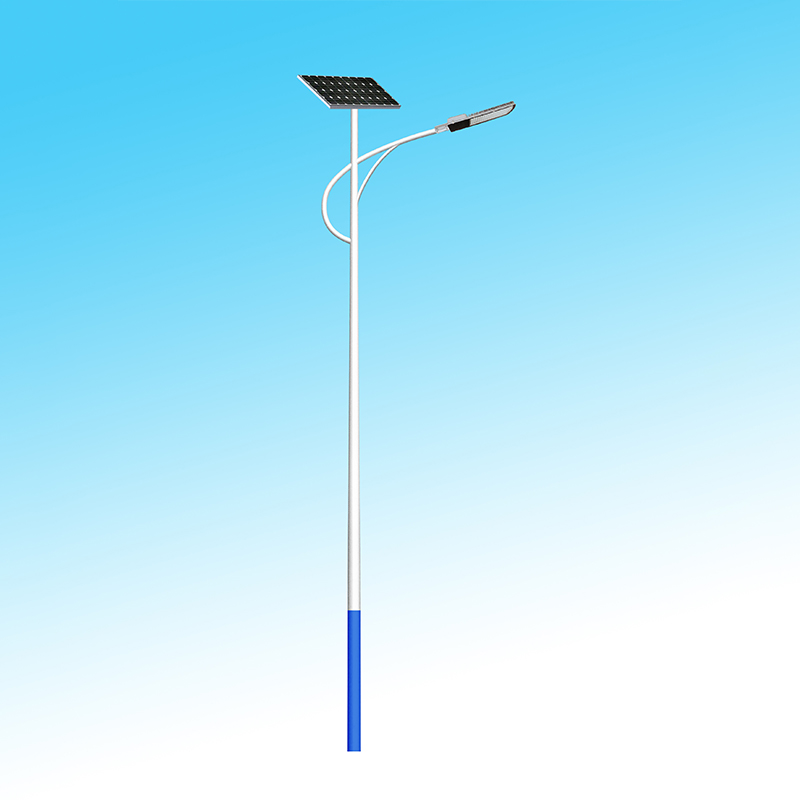

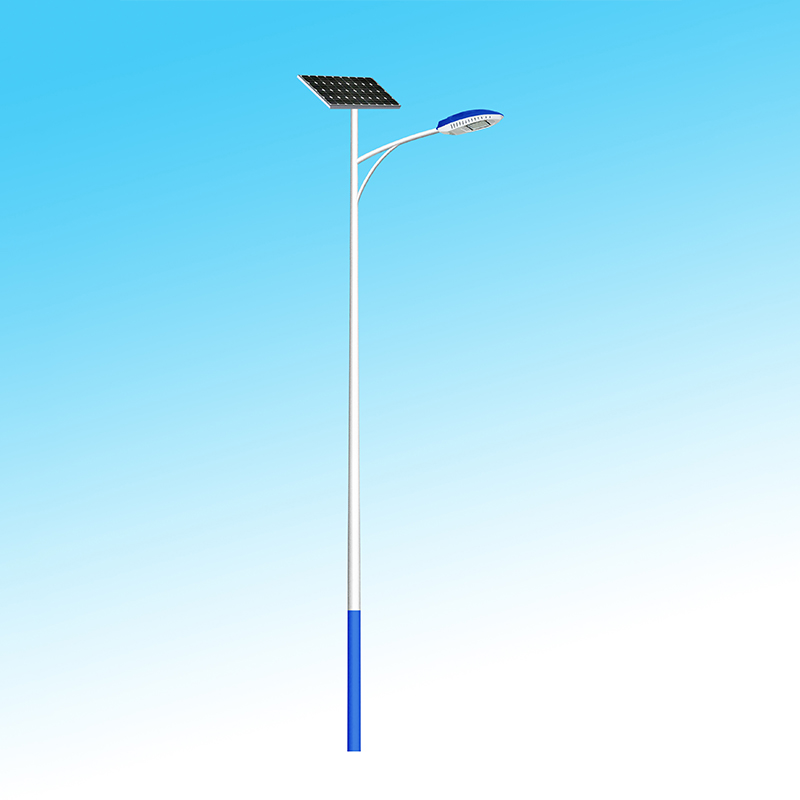

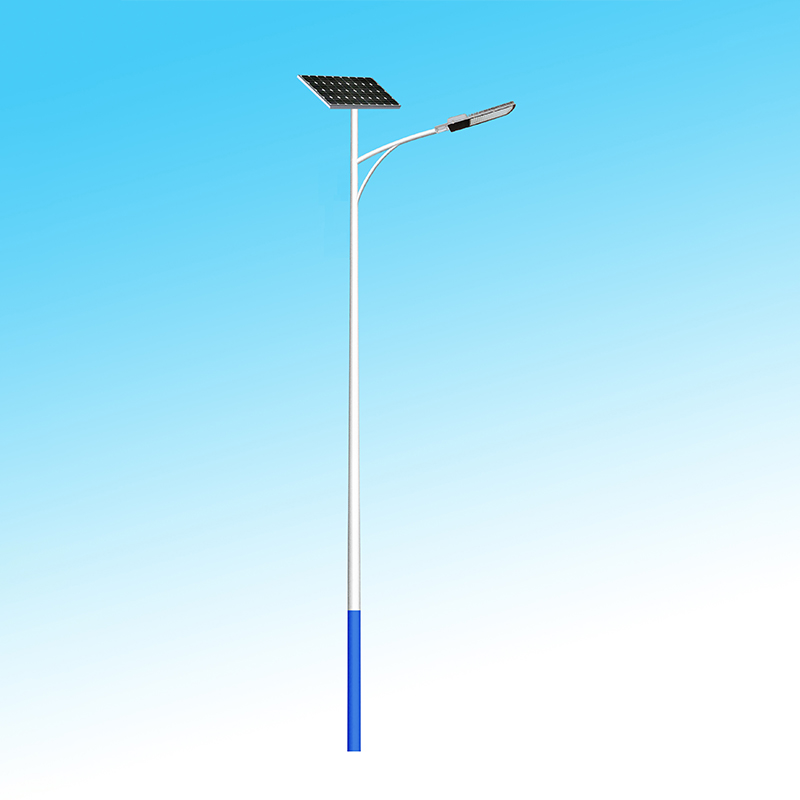

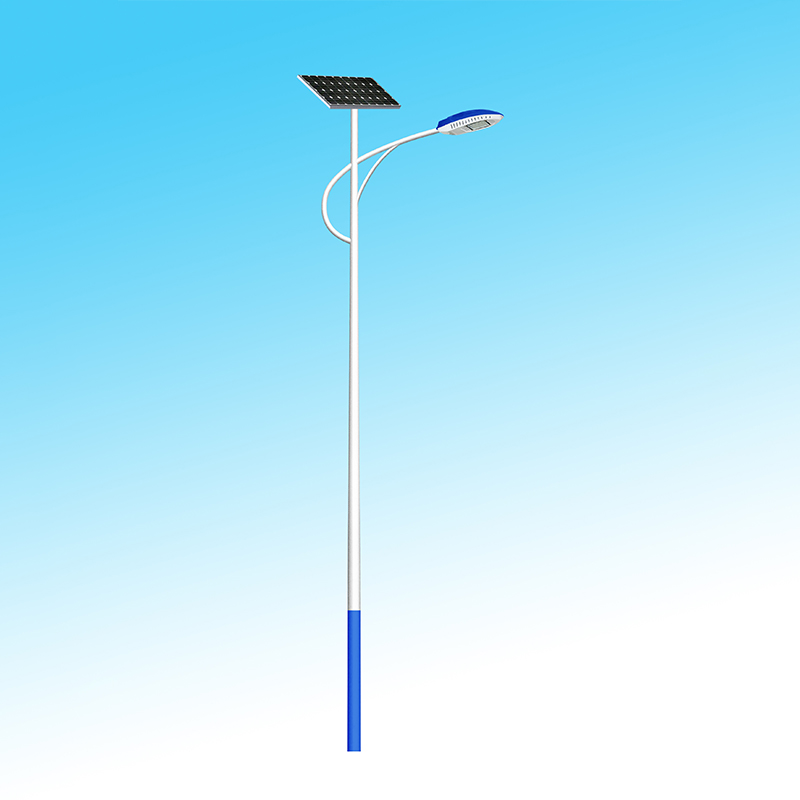

All-in-two / separate-panel system: the solar panel is mounted separately from the luminaire. This allows panel positioning to be considered independently where the bracket and site layout permit. Battery placement and connections must be confirmed for the selected model; a separate panel does not automatically mean greater output or longer autonomy.
Product views from both configurations

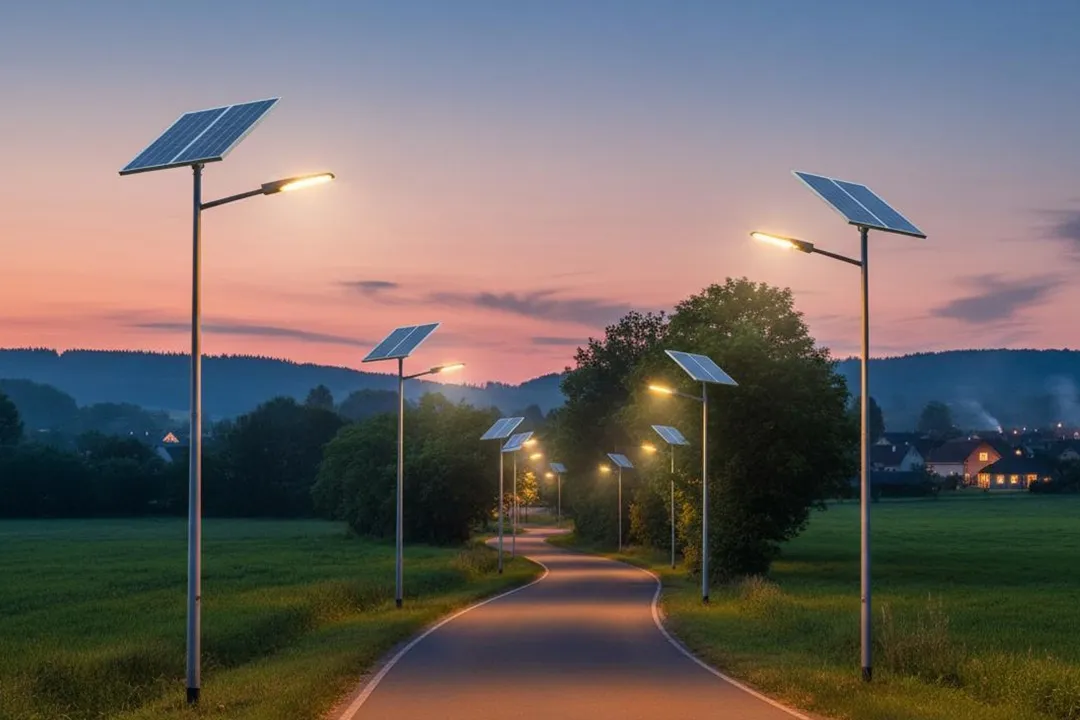

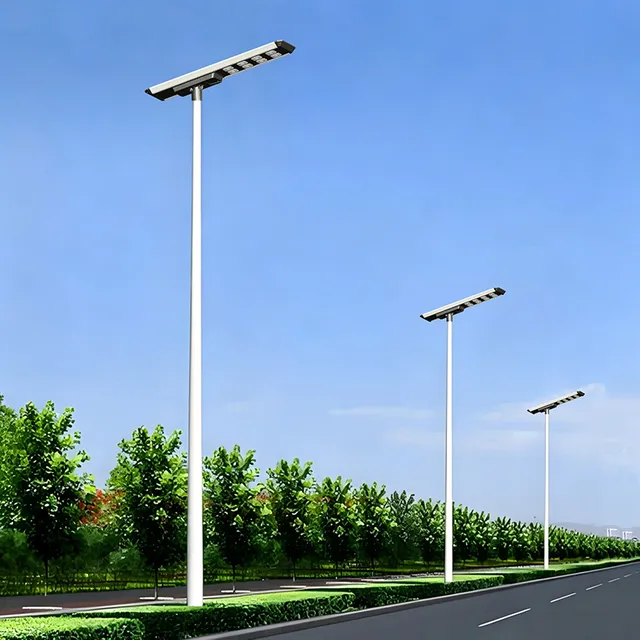

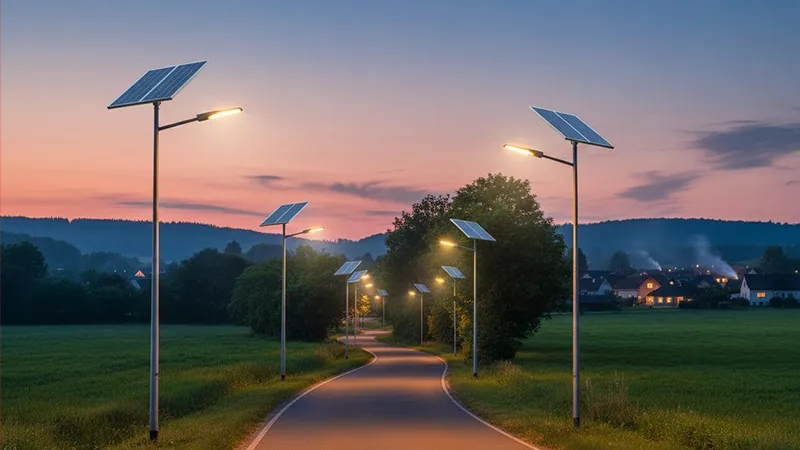

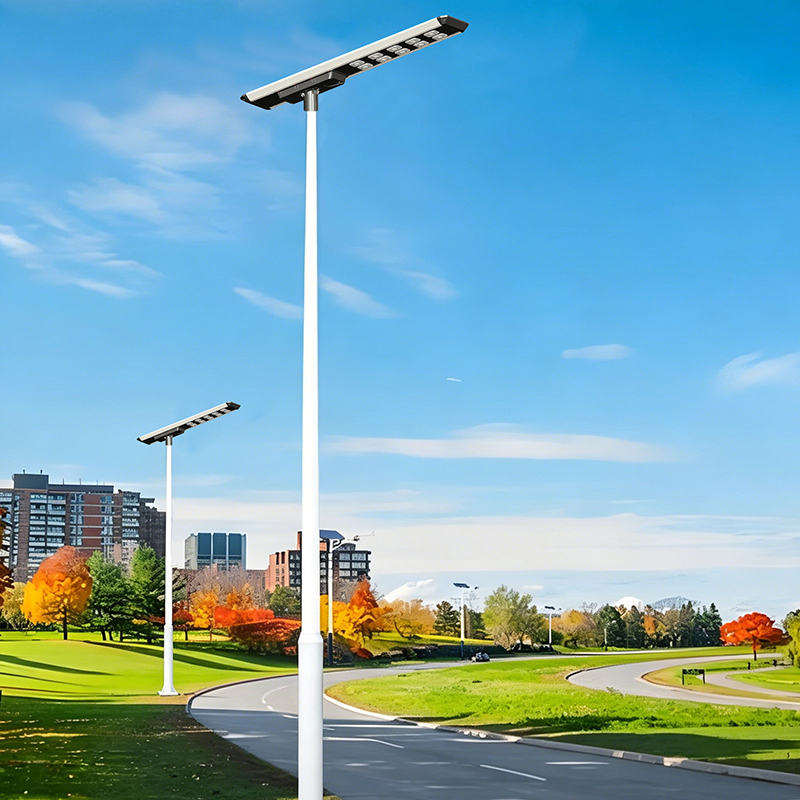

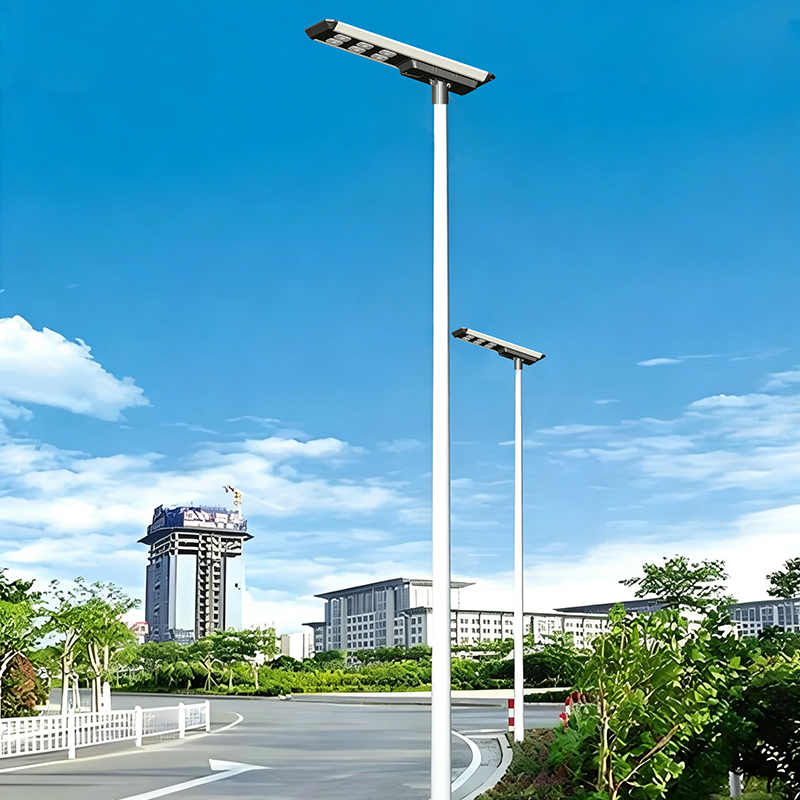

The gallery combines six views from the integrated-luminaire listing and six from the all-in-two listing. Select a thumbnail to inspect the corresponding image or open the original at full size. These views show the product range; they are not a set of photographs of one fixed SKU, and each image should not be assumed to share every parameter below.
Selection and specification notes
The specification tables distinguish established category ranges from source-listed options. They are not a matched panel/battery/LED configuration sheet. Mast Lighting confirms model-specific values, included controls, mounting details, compliance documents and warranty coverage with the quotation.
Send the project location, quantity, road width, pole spacing, required lighting hours and target rainy-day autonomy. Mast Lighting can coordinate free Dialux lighting design and OEM/ODM configuration support through its manufacturing partner. Use the solar street light calculator for preliminary energy sizing; final lighting and storage selection require project review.
Technical parameters
Solar Street Light specifications
These category ranges and supplier-listed options do not describe one fixed configuration. Confirm battery voltage and energy, paired panel/LED ratings, mounting drawings and compliance documents for the quoted model. Free Dialux lighting design supports the lighting layout; solar energy sizing and structural design require their own checks.
Electrical & Storage
| LED power range | 50W – 300W (60W, 80W, 100W and 120W PIR sensor models available) |
|---|---|
| System voltage | 12V or 24V DC |
| Battery type | LiFePO4 (lithium iron phosphate) |
| Battery service life | Typically 5–8 years for the selected LiFePO4 battery; temperature, cycling and discharge depth affect service life. |
| Battery capacity | 60 / 80 / 100 Ah listed as customizable options. Battery voltage and energy (Wh) must be confirmed for the quoted model; these capacities are not automatically paired with either system voltage. |
| Charge control | Intelligent controller with light control, timer control and dimming logic |
| Charging time | Supplier-listed reference: 6–8 hours. Actual recharge time depends on sunlight, panel sizing, battery capacity and starting state of charge. |
Optical & Runtime
| Colour temperature | 3000–6500 K listed as available options; exact CCT confirmed for the selected model. |
|---|---|
| Nightly runtime | 5–6-hour and 6–15-hour operating schedules available, depending on configuration and dimming profile. |
| Rainy-day autonomy | 3–7 consecutive days depending on the selected battery, LED load and operating profile; larger backup capacities customizable. |
| Control functions | Options include automatic light control, timer, PIR motion sensor, remote control, APP monitoring, intelligent dimming and fault alarms. Confirm the included functions in the quotation. |
Mechanical & Environmental
| Ingress protection | IP65 is listed for the two source product families. IP66 options require confirmation against the selected model documentation. |
|---|---|
| Operating temperature | Category reference: −40°C to +65°C. Confirm component operating limits and battery charging conditions for the installation site. |
| Housing | Aluminum is listed by the supplier; alloy, construction and finish confirmed for the selected luminaire. |
| Pole heights | 6m, 8m, 10m, 12m hot-dip galvanized (custom heights available) |
| Configurations | All-in-one integrated luminaire, all-in-two split system, hybrid solar/grid |
Pole & Mounting Options — Confirm Against Project Drawing
| Arm arrangements | Single, double, triple or four-arm options; dimensions and loading subject to the selected pole design. |
|---|---|
| Arm diameters | 42 / 48 / 60 / 76 mm listed options; confirm compatibility with the selected luminaire bracket. |
| Pole shapes | Round, polygonal, tapered octagonal, tapered round / conical and tapered square / square profiles; custom fabrication available. |
| Protective finish | Hot-dip galvanizing, with powder coating available. Supplier-listed galvanizing thickness averages 80–100 μm; confirm in the fabrication specification. |
| Finish color | RAL color selection or customer-specified finish. |
| Base-plate mounting | Square, octagonal or round base plate with slotted anchor-bolt holes; dimensions and foundation design project-specific. |
| Ground-embedded mounting | Buried length and foundation details determined by the approved project design; no universal depth is specified. |
Commercial
| Warranty | 3 years as listed by the supplier; covered components, exclusions and claim arrangements confirmed with the quotation. |
|---|---|
| Lighting design | Free Dialux simulation based on your road dimensions and local standard |
| OEM/ODM | Logo, packaging, wattage, battery, panel, pole and controls customizable |
| MOQ, lead time and pricing | Project-dependent — contact us for details |
| Compliance documentation | Supplier listings reference CE / RoHS. Request documents matching the quoted model and destination requirements; this is not a blanket compliance claim. |
Where it is used
Application scenarios
The solar street light is specified for the following project types. Each has its own lighting solution page covering requirements and recommended configuration.
- Urban and municipal roads
- Highways, interchanges and access roads
- Rural and off-grid village electrification
- Industrial parks and logistics yards
- Campuses, hospitals and residential compounds
- Parking areas, footpaths and perimeter security
Configurable
What can be customized
This product is manufactured to order rather than picked from stock. Full OEM/ODM customization — including branding on the housing, panel or packaging — is available for bulk orders.
- LED wattage from 50W to 300W
- Solar panel power matched to local peak sun hours
- LiFePO4 battery capacity and autonomy days
- Nightly runtime and dimming profile
- PIR motion sensing, remote control and APP monitoring
- Hybrid solar-plus-grid automatic switching
- Pole height, taper and arm design
- Logo printing on housing, panel or packaging
Product questions
Solar Street Light FAQ
Commercial questions on MOQ, samples, lead time, shipping and warranty are collected on the FAQ page.
How long do the batteries in a solar street light last?
Mast Lighting solar street lights use LiFePO4 (lithium iron phosphate) cells with a typical service life of 5 to 8 years. The complete solar street light carries a 3-year warranty.
How many rainy days can the system cover?
Available configurations target 3 to 7 consecutive rainy days of backup. Actual autonomy depends on the battery capacity, LED load, dimming schedule and available charging. Mast Lighting confirms the required configuration for your project.
Should I choose all-in-one or split solar street lights?
All-in-one designs consolidate components into an integrated assembly. All-in-two designs use a separate solar panel, allowing panel positioning to be considered independently where the mounting arrangement permits. Choose using the approved model drawing, solar exposure and required lighting output—not a blanket assumption that one arrangement is brighter or has longer backup.
What is the best mounting height for a solar street light?
Height follows the road width and target lighting class. Mast Lighting supplies 6m, 8m, 10m and 12m hot-dip galvanized poles as standard, and our free Dialux simulation confirms the correct height and spacing before production.
How much does a solar street light cost?
Price depends on LED wattage, battery capacity, panel power, pole height and order quantity. Send Mast Lighting your project parameters for a model-specific configuration and quotation.
