Solar Street Light
All-in-one and all-in-two solar street lights in a 50W–300W range, with LiFePO4 storage and project-specific panels, poles and controls.
Road Lighting
LED Street Lights — Modular 120W–320W, IP65
AC LED street lights with supplier-listed 120W, 240W and 320W options, IP65 protection and 3000–6500 K CCT choices; final configurations confirmed by project.
Overview
Mast Lighting supplies AC LED street lights for road and outdoor infrastructure projects through its manufacturing partner, Zijun Lighting. The source listing offers 120W, 240W and 320W options within this category. Select the luminaire, driver, optics and mounting arrangement together rather than choosing on wattage alone.

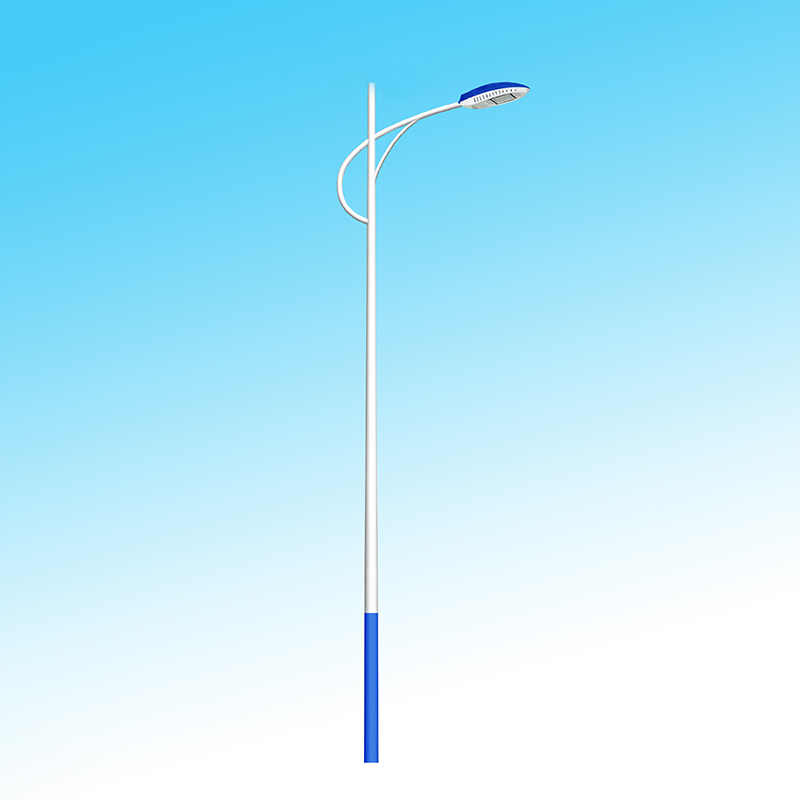

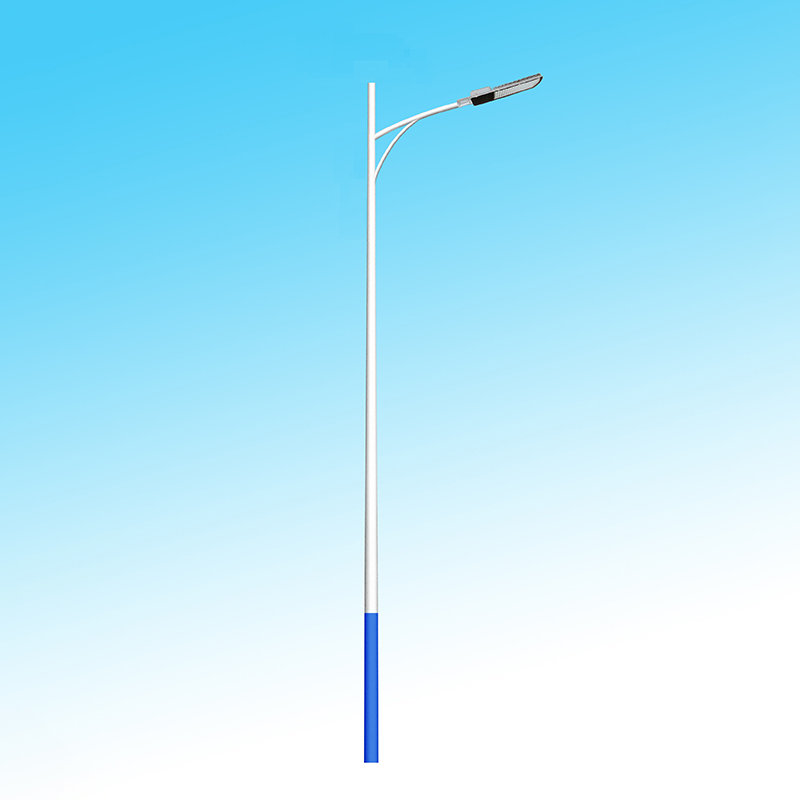

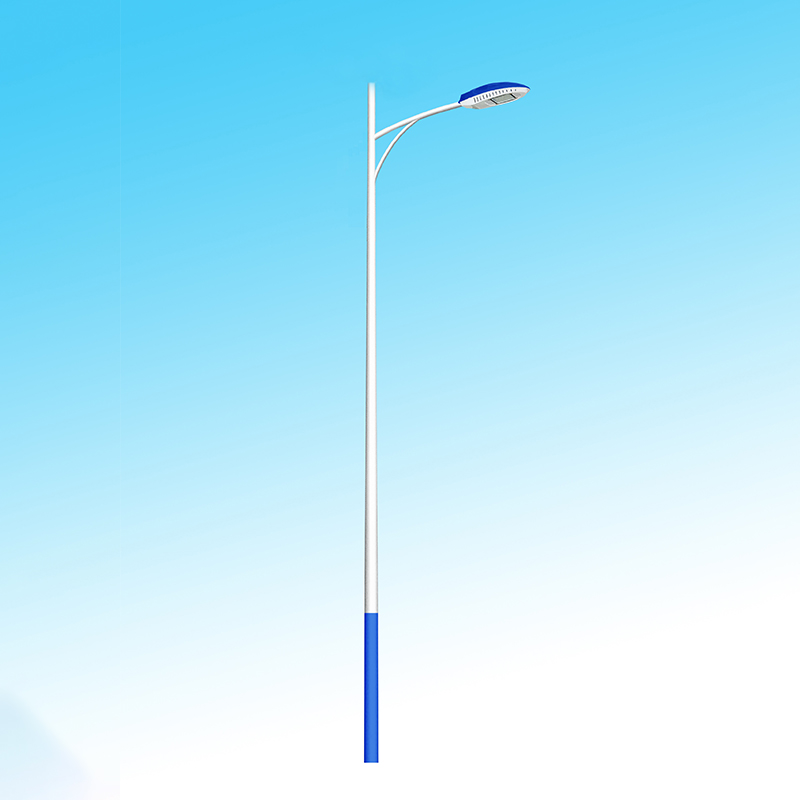

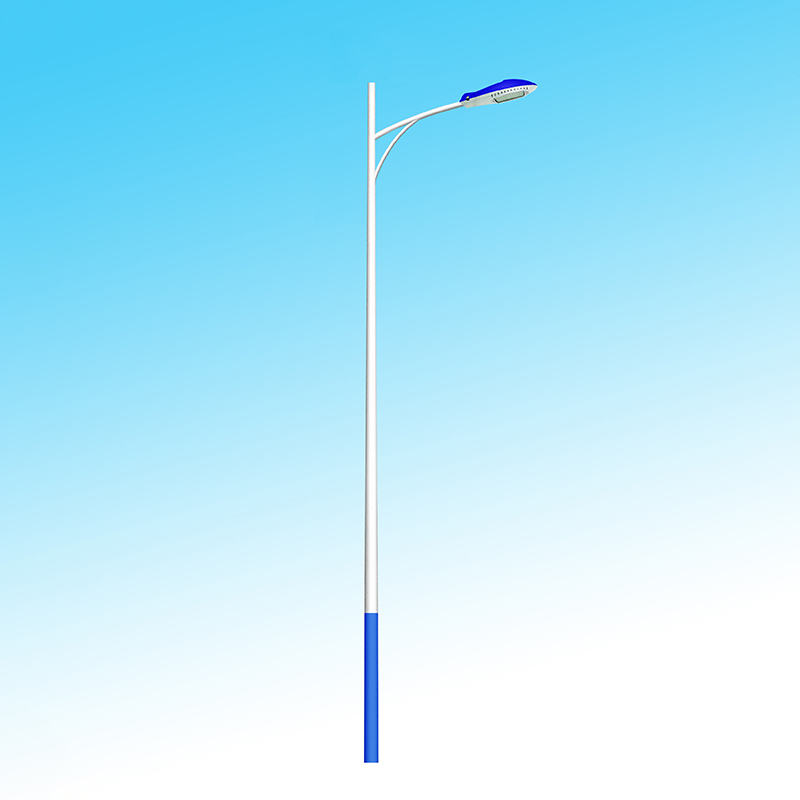

Original product views
The gallery contains six original images from the supplier’s LED Street Light listing. Choose a thumbnail or use the previous/next controls to inspect each view. Hover over the main image for 2× detail, or use Zoom in and drag on a phone. The original-image link opens the unchanged source photograph; magnification does not create extra detail.
Confirm the configuration, not just the power
The supplier lists three power options, three LED-count options and three housing sizes separately. It does not establish which values belong together. The tables below keep those lists separate so you can request a confirmed drawing and configuration sheet rather than rely on an assumed combination.
Modular construction, anti-glare optics and adjustable-angle mounting are available within the range. Confirm the actual design, adjustment range, spare parts and service access for the selected luminaire. The listing does not establish that every pictured light has field-replaceable modules.
Lighting performance needs supporting evidence
The supplier lists 200–220 lm/W and IP65. Treat efficacy as a supplier rating until a test report and photometric file identify the quoted configuration. Do not use the range to infer guaranteed lumen output, a fixed energy saving or a reduced pole count. CCT, light distribution, road geometry and the operating environment all belong in the project review.
Prepare a project-specific inquiry
Send Mast Lighting the destination, quantity, preferred wattage and CCT, AC voltage and frequency, road width, pole height and spacing, bracket outreach, control requirements and applicable lighting criteria. Include a site plan or mounting drawing if available. Our lighting design services can support a Dialux layout using the relevant photometric data.
Specify lighting poles and mounting options separately from the luminaires. For private-label supply, submit branding, finish and packaging requirements for OEM/ODM review. See municipal road lighting solutions for application guidance; these scenarios are not claims about a completed installation.
Documentation: request the current drawing, driver specification, photometric file, applicable inspection/compliance records and warranty terms for the quoted model. Mast Lighting coordinates supply and technical clarification; manufacturing-partner audits do not certify every product configuration.
Technical parameters
LED Street Light specifications
Compare these category parameters with your project requirements. Confirm configurable values and supporting documentation for the selected model before ordering. Free Dialux lighting design supports the lighting layout. Driver compatibility, electrical supply and pole/foundation design require separate checks.
Electrical & Optical — Supplier-Listed Options
| Power options | 120W, 240W and 320W are listed. Confirm the exact configuration and rated input power in the quotation; other wattages are subject to review. |
|---|---|
| Power supply | AC mains. The listing identifies a 220V LED street light, but does not provide a driver input range or frequency. Confirm compatibility with the project supply before ordering. |
| Luminous efficacy | 200–220 lm/W is the supplier-listed rating. No configuration-specific test report accompanies the listing; request photometric evidence for the quoted model. |
| Color temperature | 3000–6500 K listed range; select the required CCT and confirm availability for the chosen configuration. |
| LED quantity options | 36, 54 or 72 LEDs, with customization listed. These counts are not mapped to the wattage or housing-size options in the source. |
| Optics and aiming | Anti-glare and adjustable-angle options within the product range. Confirm the mounting adjustment, light distribution and photometric file for the selected luminaire. |
| Driver and controls | Confirm input voltage range, frequency, dimming interface and required control functions. The source listing does not specify these details. |
Housing & Environmental Ratings
| Housing material | Aluminum, as listed by the supplier. Die-cast construction is available within the range; confirm the selected housing and finish. |
|---|---|
| Listed dimensions | 500 × 250 × 80 mm; 630 × 260 × 80 mm; 760 × 270 × 80 mm. Custom sizes are listed. These dimensions are not paired with power or LED-count options; request a model drawing. |
| Ingress protection | IP65, supplier-listed. Confirm the rating and installation requirements for the complete selected luminaire. |
| Operating temperature | Supplier-listed range: −45°C to +65°C. Confirm the applicable driver, luminaire configuration and operating conditions for the installation site. |
| Modular service access | Modular versions are available within the category. Module replacement, driver access and spare-part compatibility must be confirmed for the selected design; on-site module replacement is not assumed. |
Pole & Bracket Options — Separate Project Selections
| Pole scope | Poles, arms and foundations are separate project selections, not automatically included with each luminaire. Confirm quantities and supply scope in the quotation. |
|---|---|
| Arm diameter options | 42, 48, 60 and 76 mm are listed as pole-arm options. A mounting drawing is required to confirm fit with the selected luminaire; these are not universal lamp interfaces. |
| Arm arrangements | Single, double, triple and four-arm options, subject to pole design, outreach and loading. |
| Pole profiles | Round, polygonal, tapered octagonal, tapered round / conical and tapered square / square options; final profile and dimensions specified by project. |
| Pole finish | Hot-dip galvanizing, with powder coating available. The supplier lists average galvanizing thickness of 80–100 μm; confirm it in the pole fabrication specification, not as a lamp-housing coating. |
| Finish color | RAL color selection or customer-specified pole finish. |
| Base-plate mounting | Square, octagonal or round plate with slotted anchor-bolt holes; dimensions, anchors and foundation design confirmed for the project. |
| Embedded mounting | Buried length and foundation details are project-specific. No standard burial depth or universal wind rating is established by the listing. |
Documentation, Warranty & Project Support
| Warranty | Three years, as listed by the supplier. Confirm covered components, exclusions, start date and claim arrangements in the quotation. |
|---|---|
| Compliance documents | The listing references CE / RoHS. Request documents matching the selected model and destination requirements; the listing alone does not establish product certification. |
| Lifetime and switching evidence | Request configuration-specific lifetime and switching-endurance evidence with test conditions. The listing does not identify a test method or failure criterion for these claims. |
| Lighting design | Mast Lighting coordinates free Dialux lighting design based on road geometry, mounting layout, the required lighting criteria and applicable photometric data. |
| Manufacturing-partner quality | The manufacturing partner is listed as a TÜV Rheinland audited supplier with ISO9001 quality management. These factory credentials are not Mast Lighting factory credentials or substitutes for model-specific product evidence. |
| OEM/ODM support | Wattage, optics, controls, pole/bracket requirements, branding and packaging requests are reviewed with the manufacturing partner before confirmation. |
| MOQ, lead time and pricing | Confirmed for the selected configuration, quantity and destination. No standard price, stock level or delivery time is implied. |
Where it is used
Application scenarios
The led street light is specified for the following project types. Each has its own lighting solution page covering requirements and recommended configuration.

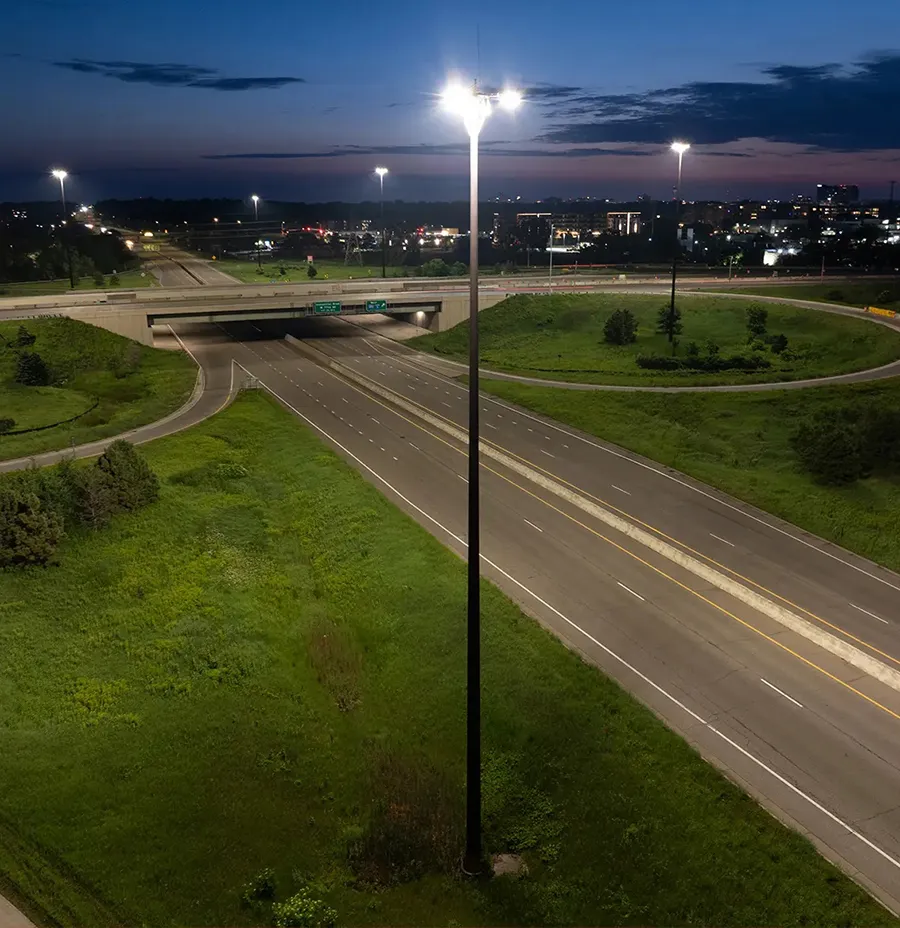

- Municipal arterial and residential roads, subject to lighting design
- Highways, interchanges and access roads with project-specific optics
- Industrial parks and logistics-yard roadways
- Campus roads, business parks and parking-area access routes
- Port and station access roads, subject to environmental and mounting review
Configurable
What can be customized
Mast Lighting coordinates OEM/ODM customization with its manufacturing partner. Submit your wattage, optics, controls, mounting, branding and packaging requirements for confirmation with the quotation.
- 120W, 240W or 320W selection; other power requirements subject to confirmation
- 3000–6500 K CCT selection, confirmed for the chosen configuration
- Optical distribution, bracket and aiming requirements
- Driver input voltage/frequency and control-interface requirements
- Pole profile, arms, mounting, galvanizing and RAL finish as separate selections
- Logo printing, private-label packaging and OEM/ODM coordination
Product questions
LED Street Light FAQ
Commercial questions on MOQ, samples, lead time, shipping and warranty are collected on the FAQ page.
How many watts is an LED street light?
The supplier lists 120W, 240W and 320W options for this range. Suitable wattage depends on the road width, mounting height, spacing, optical distribution and required lighting performance. Mast Lighting can coordinate a Dialux review; wattage alone does not establish project suitability.
How efficient are your LED street lights?
The supplier lists 200–220 lm/W, but the source page does not include a configuration-specific test report. Request photometric evidence for the quoted model before treating that figure as a project design value. No guaranteed energy saving or lumen output is inferred from the published range.
Are the fixtures repairable in the field?
Confirm service access, replaceable parts and spare-part compatibility for the selected design. Modular versions are available within the category, but the source listing does not establish that every luminaire has independently field-replaceable LED modules. Request the maintenance instructions before specifying on-site repairs.
What ingress protection do they carry?
The supplier lists IP65 for this LED street light range. Confirm the complete luminaire’s rating and installation requirements for the selected model. The source’s general weather-resistance wording is not evidence of suitability for submersion or every environmental condition.
